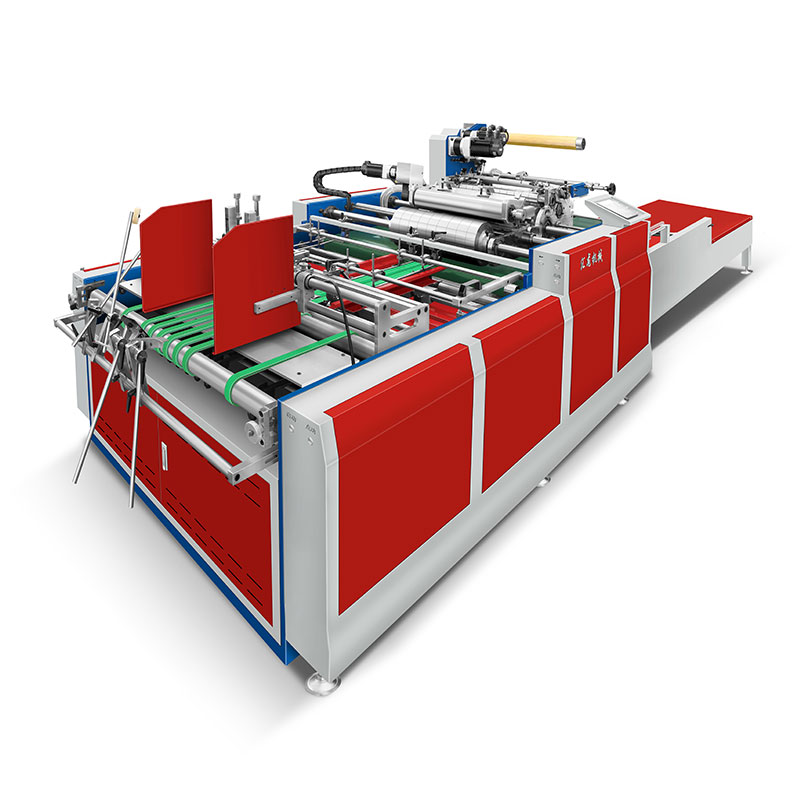

TC-1080D运控型一拖二全自动高速静音贴窗机

机器介绍Machine Introduction

TC-1080D运控型一拖二全自动高速静音贴窗机适用于各种不同款式的开窗纸盒的窗口贴膜，具有如纸巾盒、礼品盒、玩具盒、化妆盒等，此设备具有高效、精准、稳定、易操作等特点，能大大的提高生产效率，从而降低生产成本。它使用范围广，各种异形盒子也能快速操作，UV、白卡纸、瓦楞纸都适用。故该设备深受新老客户青睐。

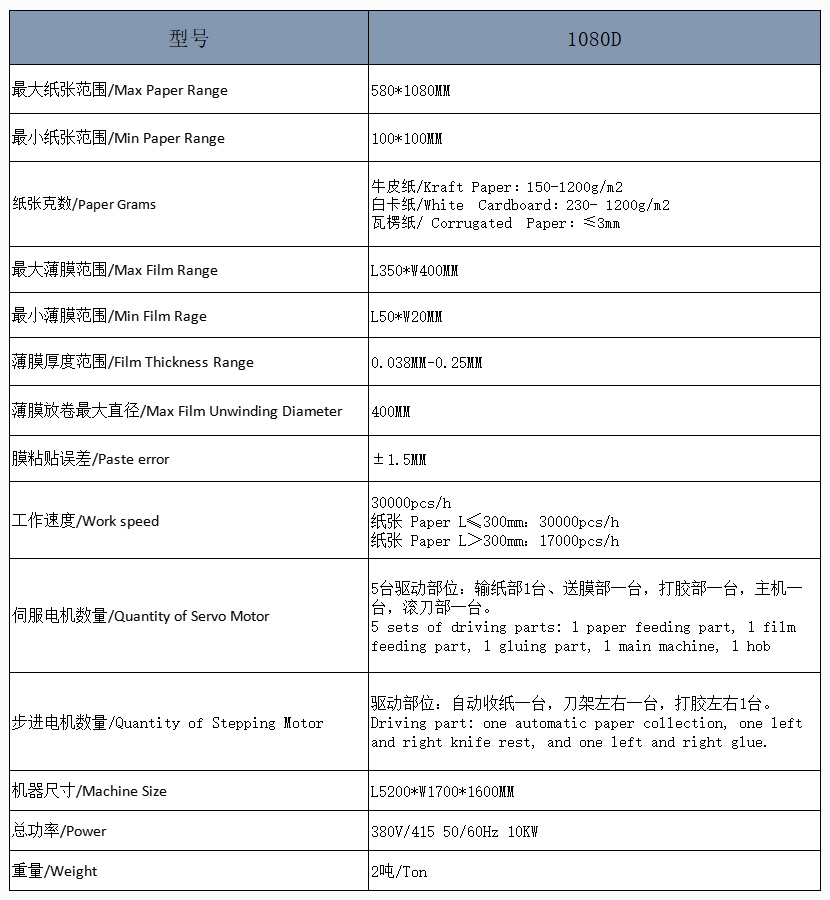

主要技术参数Specifications：

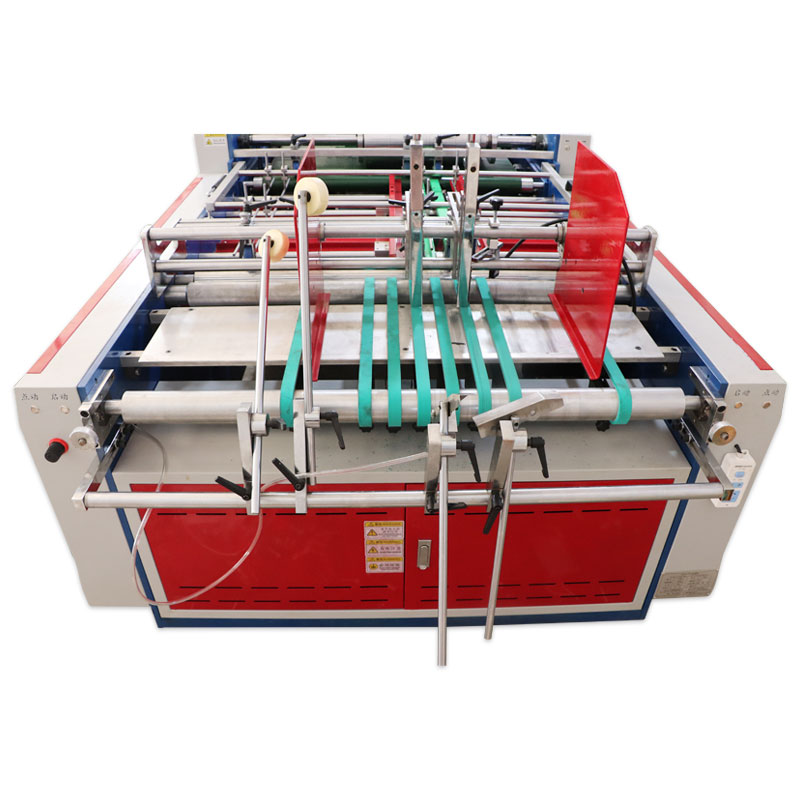

进纸部Paper  feeding  department:

采用皮带输纸，适应表面经过覆膜，逆向UV，纳米UV，油性及水性上光的纸张以及牛皮纸与瓦楞纸。

Adopt belt feeding paper,it is suitable for coated, reverse UV, nano UV, oily and waterborne paper, kraft paper and corrugated paper.

操作界面Operating interface:

所有参数的设置和功能的开关均在触摸屏内操作，操作面板外围设有“点动，启动，急停，调速”快捷操作按钮。

All the parameters and functions of the switch areoperated in the touch screen, and the operationpanel is equipped with a "Inch, start, stop, speedadjust" quick operation button.

纸张校正轨道Paper correction track：

链条导条采用进口高分子材料耐磨静音，纸张定位采用四方推块增加纸张高速运行稳定性。

Chain guides are made of imported polymer materials, wear-resistant and mute, and paper positioning is made of square pushers to increase the stability of paper in high-speed operation.

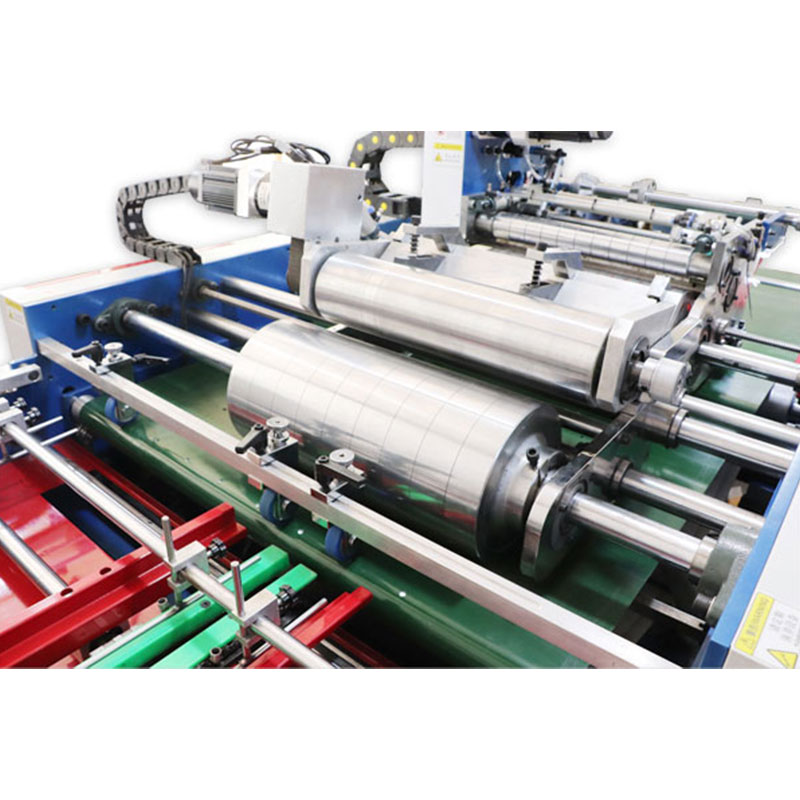

涂胶部Glue department：

涂胶滚筒采用304不锈钢涂胶滚筒耐腐蚀，EVA海绵制作涂胶模型简单造型任意，涂胶均匀，厚薄调节方便，卡位局部打胶节省胶水损耗，清洗方便。

The glue roller adopts 304 stainless steel glue roller which is corrosion-resistant. The glue model made of EVA sponge is simple and arbitrary. The glue is evenly spread, the thickness is easy to adjust, the glue is applied locally to the card position to save glue loss, and it is easy to clean.

真空吸附Vacuum adsorption：

纸张在涂胶与贴膜部位全程由打孔皮带真空吸附，高速稳定运行，精度高。

Paper is vacuum absorbed by perforated belt in the whole process of gluing and pasting.It runs steadily at high speed and has high precision.

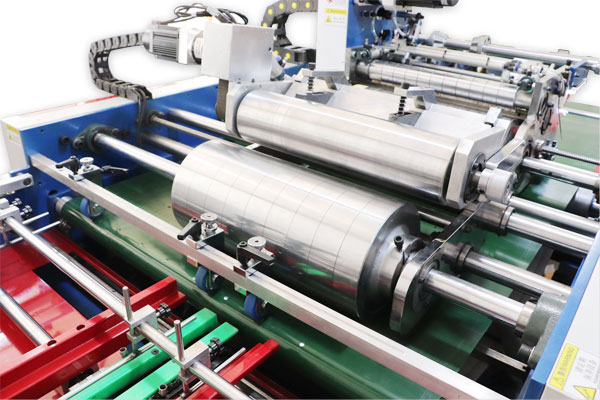

薄膜滚切与吸附Rolling cutting and absorbing of thin film：

切膜滚刀为局部分段式设计，相比传统整段式裁切噪音低，振动小，调刀换刀更方便，增加回力弹簧杜绝了卡刀问题的发生。

Film cutting hob is a local sectional design. Compared with traditional whole section cutting, it has lower noise, less vibration, more convenient tool adjustment and tool change. Adding back spring prevents the occurrence of stuck knife problem.

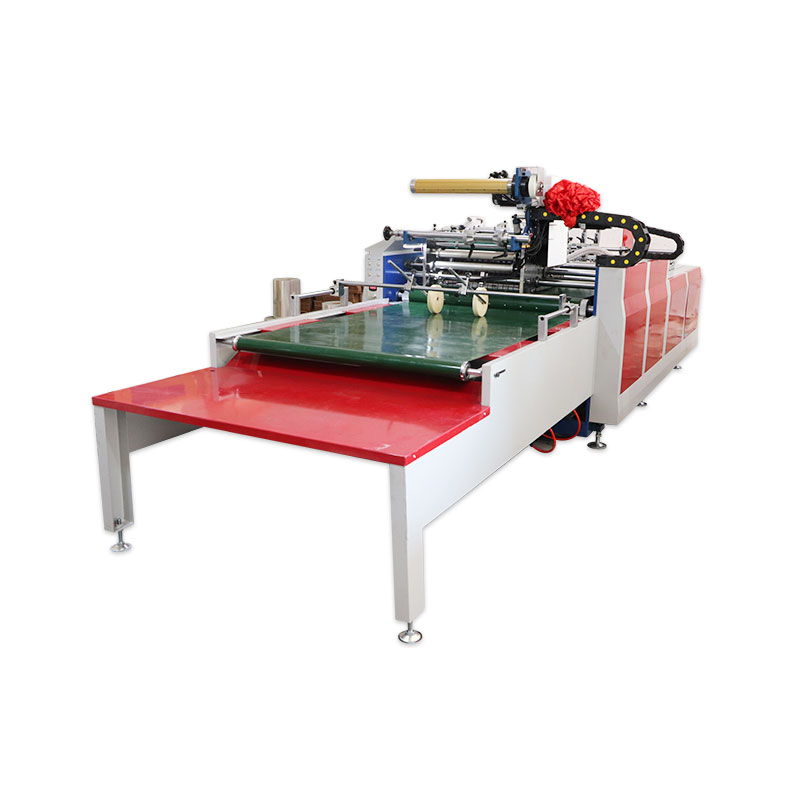

收纸部Paper collecting department:

单独步进电机控制收纸皮带运行，叠纸间距可整体或分段调节，多段速运行。

Single stepper motor controls the operation of paper-collecting belt. Paper-folding distance can beadjusted wholly or segmentally and run at multi-speed.

同步传动Synchronized transmission：

所有传动均采用同步轮同步带传动，机械噪音小，精度高。

All drives are driven by synchronous wheels and synchronous belts with low mechanical noise and high accuracy.

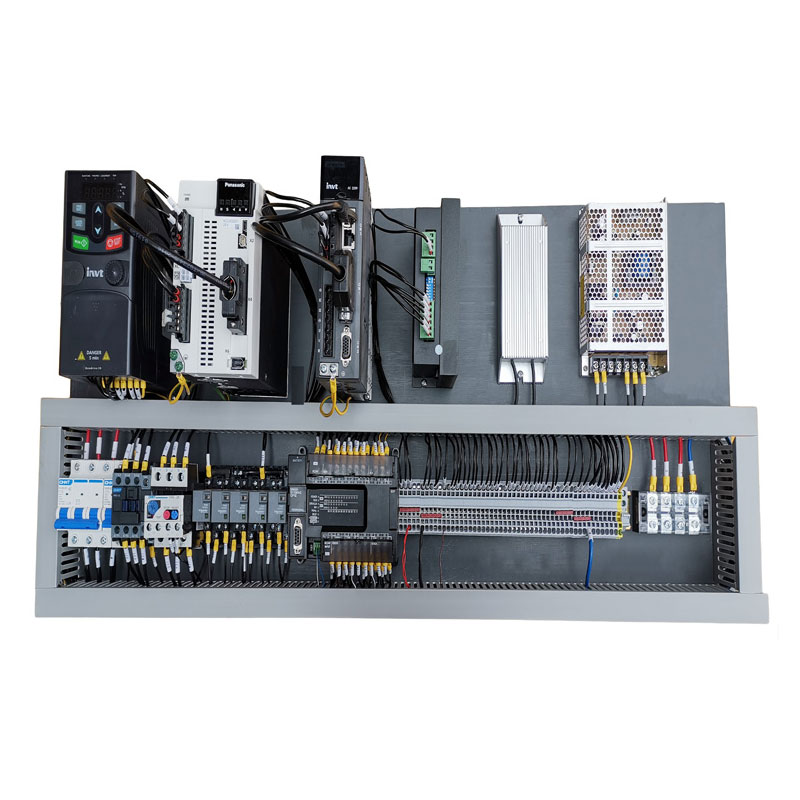

电气控制Electrical control:

采用国际知名品牌，松下，英威腾，欧姆龙，施耐德等，精密度高，稳定性好。

Adopting domestic listed companies' first-line brand "Xinjie" servo drive system and "lnovance" frequency conversion speed regulation system, the stability is high.

机器加装项目Machine installation project：

1. 可加装纸巾盒薄膜开口装置，对薄膜局部进行开口或切断。

2. 可加装针对薄膜有印刷的光标跟踪系统，对薄膜印刷面图案进行跟踪定位，窗口与薄膜图案粘贴位置始终保持一致。

1. Paper towel box film opening device can be installed to open or cut off the local film.

2. A cursor tracking system for film printing can be installed to track and locate the pattern of film printing surface, and the position of window and film pattern sticking is always the same.
